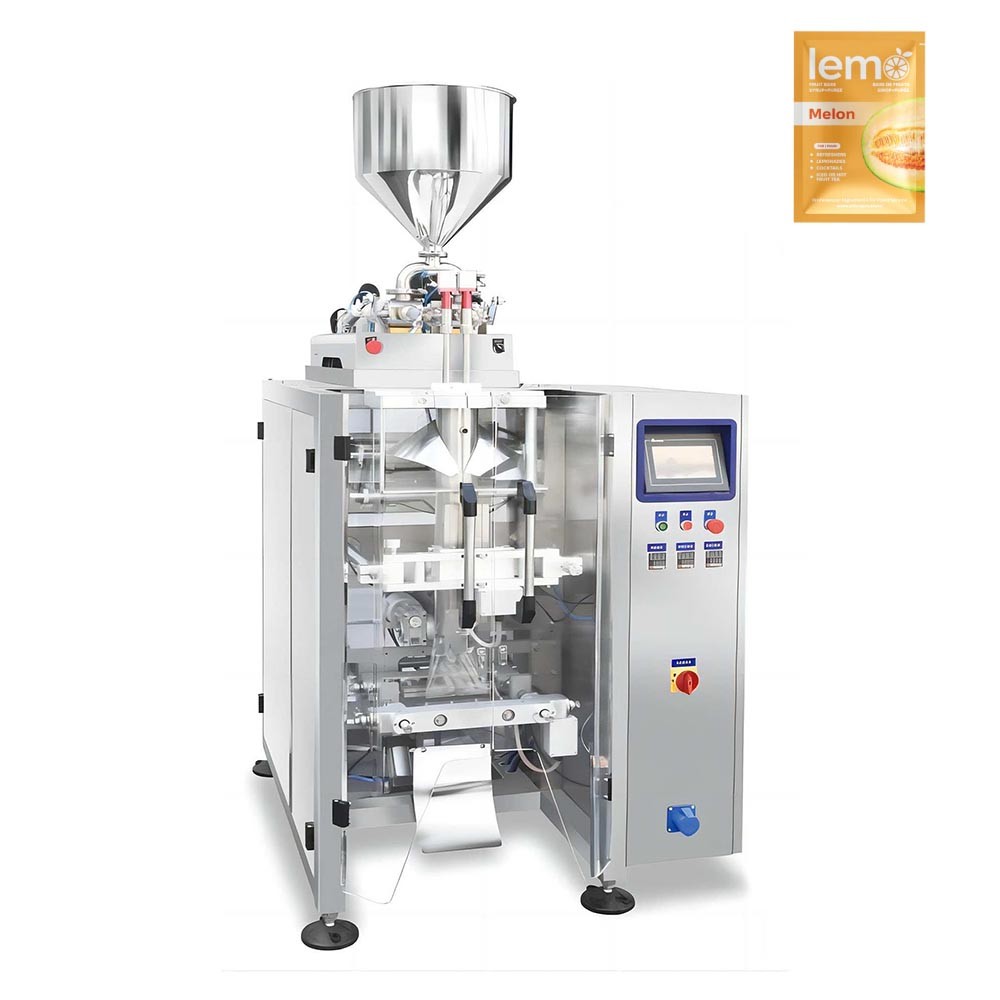

The economical solution for Fresh Water and Juice. This VFFS machine forms, fills, and seals Pillow Pouches for drinking water, soy milk, and flavored drinks. Integrated with UV Sterilization to ensure food safety.
Bottles are expensive; sachets are smart. For mass-market drinking water and juice distribution, sachets offer the lowest packaging cost. The LTC Liquid Machine is designed for continuous operation. It pulls plastic film, sterilizes it with UV light, fills it with precise liquid volume, and seals it tight—all automatically.

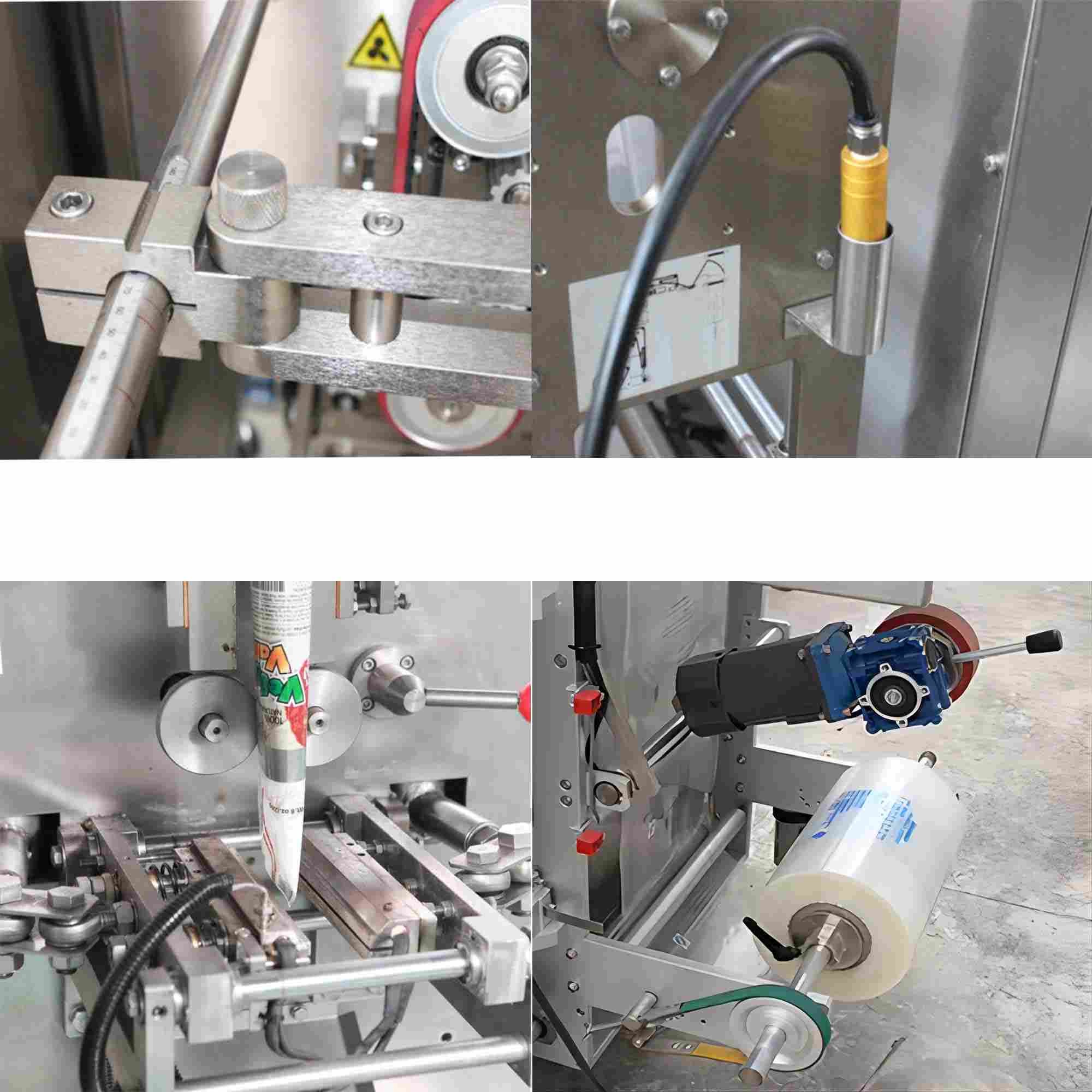

UV Sterilization: Built-in UV lamp sanitizes the film web before filling, critical for drinking water safety.
Anti-Leak Sealing: Vertical and horizontal jaws utilize high pressure to seal through wet film, preventing leaks.
Date Coding: Automatic ribbon printer stamps production/expiry dates on every bag.
Photocell Tracking: Ensures the bag is cut exactly at the logo mark for professional branding.
Designed for free-flowing beverages:
Sachet Drinking Water
Fruit Juice / Drink Mix
Soy Milk / Flavored Milk
Ice Lollies (Liquid tubes)
Vinegar / Cooking Wine
| Feature | Specification |
| Model | LTC-Liquid 320 |
| Packing Speed | 40 - 60 bags/min |
| Filling Volume | 100ml - 500ml |
| Film Material | PE Film / Laminated |
| Sterilization | UV Lamp Included |
| Pump Type | Pneumatic / Gravity |
| Power Supply | 220V, 50/60Hz |
Q: Can it pack hot juice?
A: Yes, if you use a laminated film (like PET/PE), the machine can handle hot filling temperatures up to 85°C.
Q: How accurate is the filling?
A: The adjustable pump system ensures volume accuracy within ±1.5%.
