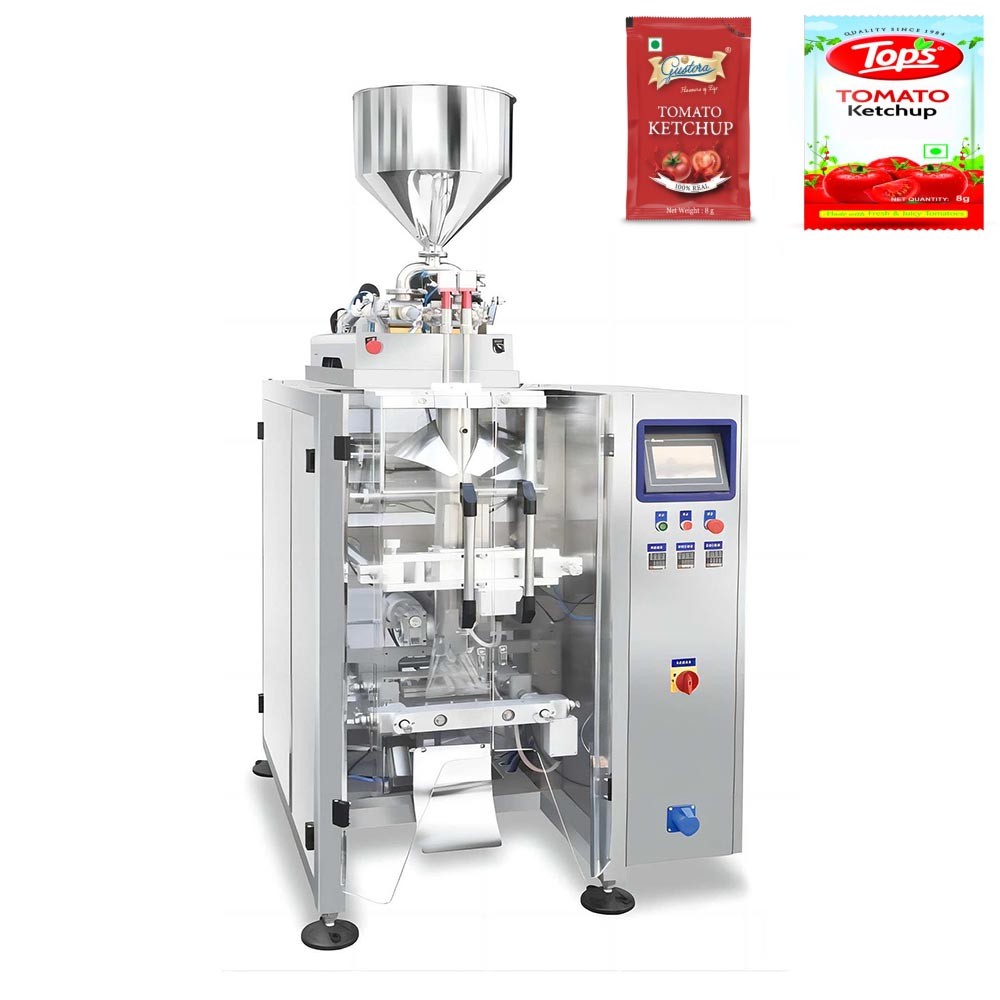

The expert solution for Viscous Sauces. This machine uses a heavy-duty Servo Piston Pump to dose thick products like Tomato Ketchup, Mayonnaise, and Chili Paste. Its "Suck-back" technology ensures clean seals without dripping.
Thick sauces are messy and corrosive. Packing acidic tomato paste or oily mayonnaise requires a machine that resists corrosion and prevents drips. The LTC Ketchup Machine is built with SS316L Contact Parts to handle acidic sauces safely. It features a specialized Nozzle Suck-Back System that reverses the pump slightly after filling, sucking the product tail back in to ensure the sealing area stays dry and leak-free.
Anti-Drip Tech: Suck-back nozzles prevent sauce from dripping onto the film seal, guaranteeing a strong, hermetic package.
Acid Resistance: Pump cylinders and hoppers are made of high-grade 316L Stainless Steel to resist corrosion from vinegar and tomato acid.
Heated Hopper: Optional double-jacket hopper keeps thick sauces (like cheese sauce or chocolate) warm and flowable.
Versatile Sealing: Can produce 3-Side Seal or 4-Side Seal sachets with easy-tear notches.
Designed for high-viscosity pastes and sauces:
Tomato Ketchup / Paste
Mayonnaise / Salad Dressing / Mustard
Chili Sauce / Hot Sauce (Sriracha)
Burger Sauce / Dip Pots
Honey / Syrup
| Feature | Specification |
| Model | LTC-Sauce 320 |
| Pump Type | Servo Piston Pump |
| Speed | 30 - 70 bags/min |
| Volume | 10ml - 100ml |
| Material | SS316L (Contact Parts) |
| Feature | Anti-Drip Suck-back |
Q: Can it pack hot sauce with seeds?
A: Yes, our Rotary Valve Piston Pump allows small particles like chili seeds or crushed pepper to pass through without clogging.
Q: How do I clean the pump?
A: The pump features "Tri-clamp" connections for tool-free disassembly, allowing you to wash out sticky sauces in minutes.
